公稱壓(Mpa)
|
殼體試驗壓力(MPa)
|
密封試驗壓力(MPa)
|
適用介質
|
介質溫度(℃)
|
|
1.0
|
1.5
|
1.1
|
水
|
0～80(隔膜式)
0～200(活塞式) |
|
1.6
|
2.4
|
1.76
|
||
|
2.5
|
3.75
|
2.75
|
三、主要零件材料
|
零件名稱
|
零件材料
|
|
閥體 閥蓋
|
WCB
|
|
閥座 閥盤
|
銅合金
|
|
密封圈 O型圈
|
丁腈橡膠
|
|
閥桿
|
2Cr13
|
|
彈簧
|
50CrVA
|
|
針型閥
|
銅合金
|
|
球閥
|
銅合金
|
|
浮球閥
|
銅合金
|
|
微型過濾器
|
不銹鋼
|

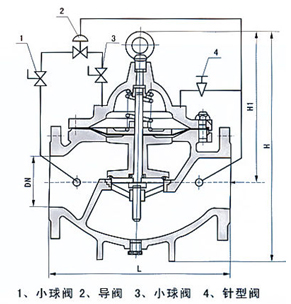

四、凱斯特牌900X緊急關閉閥主要外形連接尺寸：
|
DN
|
L
|
A
|
A1
|
H
|
H1
|
F
|
D mm
|
D1 mm
|
D2 mm
|
n-Φd
|
||||||||
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
PN1.0
|
PN1.6
|
PN2.5
|
PN1.0
|
PN1.6
|
PN2.5
|
PN1.0
|
PN1.6
|
PN2.5
|
PN1.0
|
PN1.6
|
PN2.5
|
|
|
20
|
150
|
292
|
136
|
342
|
247
|
116
|
105
|
105
|
105
|
75
|
75
|
75
|
58
|
58
|
56
|
4-13.5
|
4-13.5
|
4-14
|
|
25
|
160
|
292
|
136
|
342
|
247
|
116
|
115
|
115
|
115
|
85
|
85
|
85
|
68
|
68
|
65
|
4-13.5
|
4-13.5
|
4-14
|
|
32
|
180
|
292
|
136
|
342
|
247
|
116
|
140
|
140
|
140
|
100
|
100
|
100
|
78
|
78
|
76
|
4-17.5
|
4-17.5
|
4-18
|
|
40
|
200
|
330
|
155
|
395
|
278
|
170
|
150
|
150
|
150
|
110
|
110
|
112
|
88
|
88
|
84
|
4-17.5
|
4-17.5
|
4-18
|
|
50
|
203
|
330
|
155
|
395
|
278
|
170
|
165
|
165
|
165
|
125
|
125
|
125
|
102
|
102
|
99
|
4-17.5
|
4-17.5
|
4-18
|
|
65
|
216
|
350
|
165
|
405
|
298
|
180
|
185
|
185
|
185
|
145
|
145
|
145
|
122
|
122
|
118
|
4-17.5
|
4-17.5
|
8-18
|
|
80
|
241
|
365
|
175
|
430
|
313
|
210
|
200
|
200
|
200
|
160
|
160
|
160
|
133
|
133
|
132
|
8-17.5
|
8-17.5
|
8-18
|
|
100
|
292
|
410
|
195
|
510
|
350
|
275
|
220
|
220
|
235
|
180
|
180
|
190
|
158
|
158
|
156
|
8-17.5
|
8-17.5
|
8-22
|
|
125
|
330
|
455
|
220
|
560
|
365
|
310
|
250
|
250
|
270
|
210
|
210
|
220
|
184
|
184
|
184
|
8-17.5
|
8-17.5
|
8-26
|
|
150
|
356
|
475
|
230
|
585
|
420
|
355
|
285
|
285
|
300
|
240
|
240
|
250
|
212
|
212
|
211
|
8-22
|
8-22
|
8-26
|
|
200
|
495
|
530
|
255
|
675
|
450
|
460
|
340
|
340
|
360
|
295
|
295
|
310
|
268
|
268
|
274
|
8-22
|
12-22
|
12-26
|
|
250
|
622
|
623
|
300
|
730
|
470
|
500
|
395
|
405
|
425
|
350
|
355
|
370
|
320
|
320
|
330
|
12-22
|
12-26
|
12-30
|
|
300
|
698
|
700
|
340
|
760
|
490
|
580
|
445
|
460
|
485
|
400
|
410
|
430
|
370
|
370
|
389
|
12-22
|
12-26
|
16-30
|
|
350
|
787
|
840
|
415
|
840
|
526
|
640
|
505
|
520
|
555
|
460
|
470
|
490
|
430
|
430
|
448
|
16-22
|
16-26
|
16-33
|
|
400
|
914
|
880
|
430
|
910
|
570
|
715
|
565
|
580
|
620
|
515
|
525
|
550
|
482
|
482
|
503
|
16-26
|
16-30
|
16-36
|
|
450
|
978
|
930
|
460
|
910
|
570
|
780
|
615
|
640
|
670
|
565
|
585
|
600
|
532
|
550
|
548
|
20-26
|
20-30
|
20-36
|
|
500
|
1075
|
980
|
490
|
1110
|
750
|
830
|
670
|
715
|
730
|
620
|
650
|
660
|
585
|
585
|
609
|
20-26
|
20-33
|
20-36
|
|
600
|
1230
|
1060
|
530
|
1286
|
850
|
920
|
780
|
840
|
845
|
725
|
770
|
770
|
685
|
685
|
720
|
20-30
|
20-36
|
20-39
|
|
700
|
1650
|
1130
|
560
|
1460
|
865
|
980
|
895
|
910
|
960
|
840
|
840
|
875
|
800
|
800
|
820
|
24-30
|
24-36
|
24-42
|
|
800
|
1750
|
1230
|
610
|
1640
|
975
|
1050
|
1015
|
1025
|
1085
|
950
|
950
|
990
|
905
|
905
|
9285
|
24-33
|
24-39
|
24-48
|
安裝示意圖
